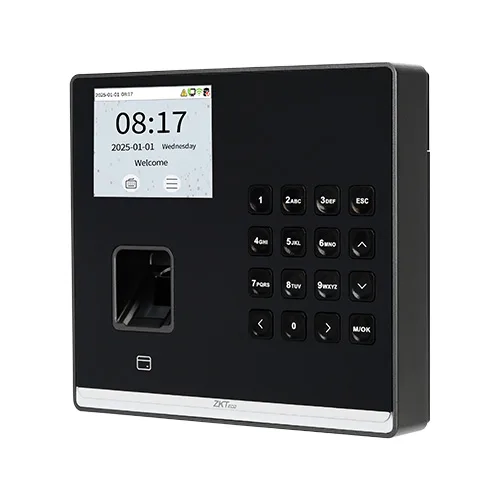

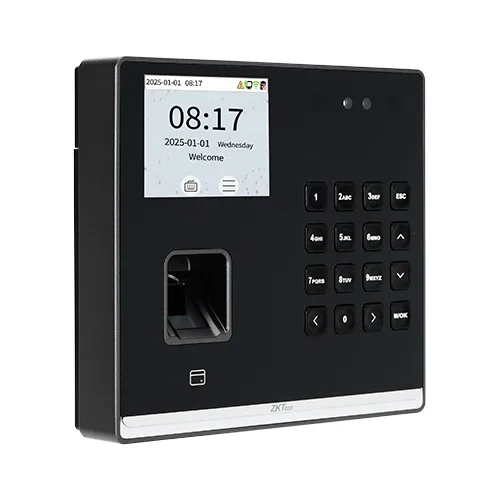

ZKTeco SenseFace M2F-LR Facial & Fingerprint Time Attendance Terminal

ZKTeco SenseFace M2F-LR Time Attendance Terminal

Product Overview

The ZKTeco SenseFace M2F-LR is a time attendance and access control terminal combining visible-light facial authentication, fingerprint verification, card authentication and password entry. It is designed for small and medium-sized businesses that need reliable attendance management with network and door-control capabilities.

Main Uses

• Employee time and attendance.
• Door access control with electric lock.
• Local or cloud-based workforce management.
• Offices, branches, stores and SMEs.

Key Features

• Visible Light facial authentication with anti-spoofing.
• Four authentication methods: Face / Fingerprint / Card / Password.
• 2.8-inch TFT color LCD, 320×240.
• 1MP binocular camera.
• Dual Core 1GHz CPU, 512MB RAM and 8GB ROM on the Standard Version.
• 500 face templates, 1,000 fingerprints, 1,000 cards and 1,000 users.
• 150,000 transaction capacity.
• Fingerprint authentication under 1 second and facial authentication under 1.2 seconds.
• Facial recognition distance from 50 to 180 cm.
• ADMS, Photo Capture and Event Photo Capture.
• TCP/IP and USB Host.
• Electric lock, door sensor and exit button interfaces.

Important Technical Specifications

• Model: SenseFace M2F-LR.
• Operating System: Linux.
• CPU: Dual Core @ 1GHz.
• Memory: 512MB RAM / 8GB ROM (Standard Version).
• Display: 2.8" TFT Color LCD, 320×240.
• Camera: 1MP Binocular Camera.
• Fingerprint Sensor: ZK Optical Sensor.
• Physical Keypad: 16 keys.
• Face Capacity: 500.
• Fingerprint Capacity: 1,000.
• Card Capacity: 1,000.
• User Capacity: 1,000.
• Transaction Capacity: 150,000.
• Maximum Password Length: 8 digits.
• Face Algorithm: ZKFace V4.0.
• Fingerprint Algorithm: ZKFingerprint V13.0 standard / V10.0 optional.
• Standard Card Type: 125kHz ID Card.
• 13.56MHz IC Card: Optional.
• Communication: TCP/IP + USB Type-A for USB drive.
• 2.4GHz Wi‑Fi: Built in on the offered unit.
• Power Supply: DC 12V / 1.5A.
• Dimensions: 154 × 138 × 34 mm.
• Net Weight: 0.43 kg.
• Operating Temperature: -5°C to 45°C.
• Operating Humidity: 10%–90% RH non-condensing.

Connectivity and Compatibility

The terminal supports TCP/IP, USB Type-A and ADMS. It works with ZKBio Time on-premise software and ZKBio Zlink mobile/cloud software. The offered unit includes built-in Wi‑Fi.

Who Is It Suitable For?

Suitable for SMEs that need multi-factor attendance authentication together with basic access-control capabilities.

When Might You Need Another Option?

If significantly more than 1,000 users or more than 500 face templates are required, a higher-capacity terminal may be more appropriate.

Before You Buy

• The standard card type is 125kHz ID Card.
• 13.56MHz IC Card is optional.
• Built-in Wi‑Fi is included on the offered unit.
• Built-in rechargeable 2,000mAh backup battery, providing up to 4 hours of operation, about 7 hours standby and approximately 3 hours charging time.
• The offered unit includes Wi‑Fi and the internal backup battery; IC Card support remains configuration-dependent.
