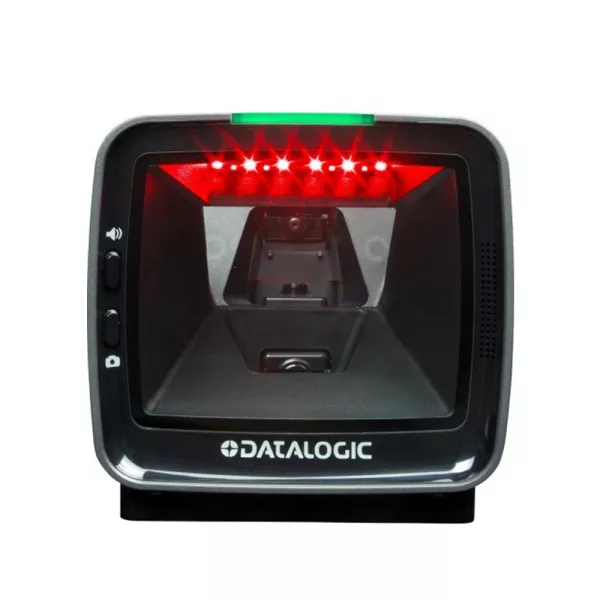

Datalogic Magellan 3410VSi desktop Omnidirectional Barcode Scanner

Datalogic Magellan 3410VSi Barcode Scanner

Product Overview

The Datalogic Magellan 3410VSi is a fixed retail scanner designed for POS environments. It uses digital imaging with a 1MP, 1280×800 sensor to read 1D, 2D and QR codes from printed media and mobile screens.

Main Uses

• Retail POS and cashier stations.
• Supermarkets and pharmacies.
• Self-checkout kiosks.
• Mobile loyalty cards, coupons and QR codes.

Key Features

• 1D, 2D and QR imaging.
• 1MP / 1280×800 image sensor.
• Up to 30 million pixels per second read rate.
• Resolution down to 5 mil.
• Omnidirectional reading with wide reading angles.
• Multiple diffused LEDs optimized for eye comfort.
• BMP and JPEG image capture.
• IP52 protection.
• Reads printed and mobile-screen barcodes.
• The offered unit uses USB connectivity.

Important Technical Specifications

• Model: Magellan 3410VSi.
• Scanner Type: Fixed / On-Counter Vertical Imager.
• Scanning Technology: Digital Imaging.
• Image Sensor: 1MP, 1280×800 pixels.
• Maximum Read Rate: 30 million pixels/second.
• Maximum Resolution: 5 mil.
• Minimum Print Contrast: 25%.
• Read Height: 14 cm.
• Pitch: ±65°.
• Roll: 0–360°.
• Skew: ±75°.
• Dimensions: 13.7 × 15.2 × 9.4 cm.
• Weight: 0.6 kg.
• Sealing: IP52.
• Ambient Light: 0–86,100 lux.
• ESD Protection: 25kV air discharge.
• Operating Temperature: 10–40°C.
• Storage/Transport Temperature: -40–70°C.
• Humidity: 5–95% non-condensing.
• DC Input: 5–12V.

Supported Symbologies

Supports standard 1D codes including GS1 DataBar, and 2D symbologies including QR Code, Data Matrix and Aztec, plus PDF417, MicroPDF417 and stacked GS1 DataBar formats. Digimarc/GS1 Digital Watermark support is optional depending on configuration.

Connectivity and Compatibility

The unit offered by CairoPOS uses USB. The Magellan 3410VSi family is also available in other configurations including RS-232, USB Keyboard, USB COM and USB TEC depending on part number and cable.

Who Is It Suitable For?

Ideal for POS locations that need hands-free scanning, including retail, pharmacy and service counters handling both product barcodes and mobile QR codes.

When Might You Need Another Option?

If you need the highest performance level within the Magellan 34xxVSi family for very high-throughput applications, the Magellan 3450VSi may be more suitable.

Before You Buy

• This page describes the offered USB configuration.
• Cable, power-supply and mounting options vary by configuration.
• Confirm the required USB cable/interface for your POS system before ordering.
